EMERGE OTW Low-Profile Balloon Catheter

EMERGE OTW

SKU:

91641-1-1

The EMERGE OTW Low-Profile Balloon Catheter is designed for coronary angioplasty, offering bi-segment or Push shaft options for optimized flexibility and support.

  • Safe Payments
    Payment upon receipt of goods, Payment by card in the department, Google Pay, Online card, -5% discount in case of payment

  • Worldwide Delivery
    The Consumer Protection Act does not provide for the return of this product of proper quality.

  • Money Back Guarantee
    The Consumer Protection Act does not provide for the return of this product of proper quality.

Description

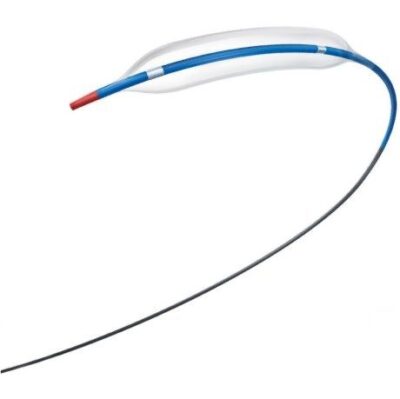

The EMERGE™ OTW Low-Profile Balloon Catheter is a next-generation device engineered for percutaneous coronary angioplasty (PCI/PTCA).

Key Features:

  • Low-profile design for easy vessel entry.

  • Distal nylon section (red-colored) — minimized for better trackability.

  • Bi-segment shaft: flexible distal under the balloon + rigid middle and proximal sections for pushability.

  • Push modification: rigid shaft design (distal, middle, proximal) for maximum force transmission.

  • Over-the-Wire (OTW) system — provides more control in complex anatomy.

Clinical Benefit:
The EMERGE™ OTW catheter ensures balance between flexibility and strength, making it suitable for complex coronary interventions requiring precise navigation and robust support.

Product Code Balloon Length / Diameter (mm) Shaft Profile Tip Profile (in/mm) Nominal Pressure (atm/kPa) Rated Burst Pressure (atm/kPa)
H749391950812 8 / 1.20 Standard 0.017 / 0.43 6 (608) 18 (1824)
H749391960812 8 / 1.20 Push 0.017 / 0.43 6 (608) 18 (1824)
H749391950815 8 / 1.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391960815 8 / 1.50 Push 0.017 / 0.43 6 (608) 14 (1419)
H749391950820 8 / 2.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391950822 8 / 2.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391950825 8 / 2.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391950827 8 / 2.75 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391950830 8 / 3.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391950832 8 / 3.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391950835 8 / 3.50 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391950837 8 / 3.75 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391950840 8 / 4.00 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391951212 12 / 1.20 Standard 0.017 / 0.43 6 (608) 18 (1824)
H749391961212 12 / 1.20 Push 0.017 / 0.43 6 (608) 18 (1824)
H749391951215 12 / 1.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391961215 12 / 1.50 Push 0.017 / 0.43 6 (608) 14 (1419)
H749391951220 12 / 2.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951222 12 / 2.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951225 12 / 2.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951227 12 / 2.75 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951230 12 / 3.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951232 12 / 3.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951235 12 / 3.50 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391951237 12 / 3.75 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391951240 12 / 4.00 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391951512 15 / 1.20 Standard 0.017 / 0.43 6 (608) 18 (1824)
H749391961512 15 / 1.20 Push 0.017 / 0.43 6 (608) 18 (1824)
H749391951515 15 / 1.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391961515 15 / 1.50 Push 0.017 / 0.43 6 (608) 14 (1419)
H749391951520 15 / 2.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951522 15 / 2.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951525 15 / 2.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951527 15 / 2.75 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951530 15 / 3.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951532 15 / 3.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391951535 15 / 3.50 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391951537 15 / 3.75 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391951540 15 / 4.00 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391952012 20 / 1.20 Standard 0.017 / 0.43 6 (608) 18 (1824)
H749391962012 20 / 1.20 Push 0.017 / 0.43 6 (608) 18 (1824)
H749391952015 20 / 1.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391962015 20 / 1.50 Push 0.017 / 0.43 6 (608) 14 (1419)
H749391952020 20 / 2.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391952022 20 / 2.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391952025 20 / 2.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391952027 20 / 2.75 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391952030 20 / 3.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391952032 20 / 3.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391952035 20 / 3.50 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391952037 20 / 3.75 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391952040 20 / 4.00 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391953020 30 / 2.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391953022 30 / 2.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391953025 30 / 2.50 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391953027 30 / 2.75 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391953030 30 / 3.00 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391953032 30 / 3.25 Standard 0.017 / 0.43 6 (608) 14 (1419)
H749391953035 30 / 3.50 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391953037 30 / 3.75 Standard 0.017 / 0.43 6 (608) 12 (1216)
H749391953040 30 / 4.00 Standard 0.017 / 0.43 6 (608) 12 (1216)

Additional information

Product Code

H749391950812, H749391960812, H749391950815, H749391960815, H749391950820, H749391950822, H749391950825, H749391950827, H749391950830, H749391950832, H749391950835, H749391950837, H749391950840, H749391951212, H749391961212, H749391951215, H749391961215, H749391951220, H749391951222, H749391951225, H749391951227, H749391951230, H749391951232, H749391951235, H749391951237, H749391951240, H749391951512, H749391961512, H749391951515, H749391961515, H749391951520, H749391951522, H749391951525, H749391951527, H749391951530, H749391951532, H749391951535, H749391951537, H749391951540, H749391952012, H749391962012, H749391952015, H749391962015, H749391952020, H749391952022, H749391952025, H749391952027, H749391952030, H749391952032, H749391952035, H749391952037, H749391952040, H749391953020, H749391953022, H749391953025, H749391953027, H749391953030, H749391953032, H749391953035, H749391953037, H749391953040
